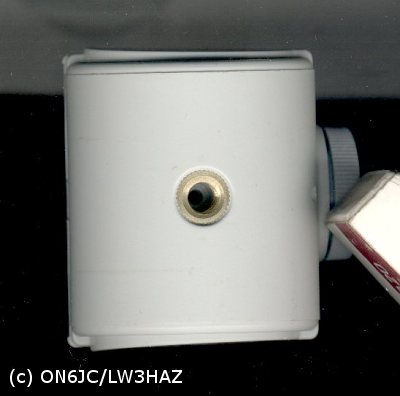

The rear side of the camera (the cable has already been removed)
|
|
|
|
To take the camera apart, it's necessary to remove the base. Apply downward pressure, slightly skewed, so the base will snap off. |
|||
|
This exposes an embedded mounting nut for a tripod. Inside is a
small screw that opens the case.
|
|
|
|
This is all there is to see - one small PC board! |
|||
|
This is the RAM memory side of the board. Notice that the RAM chips
are even of different brands. At the right is the connector.
|
|
|
|
Front side, with the lens still mounted. At the right, the green indicator LED |
|||
|
At the top is the optical sensor, below is the QV108 ASIC controller.
|
||
|

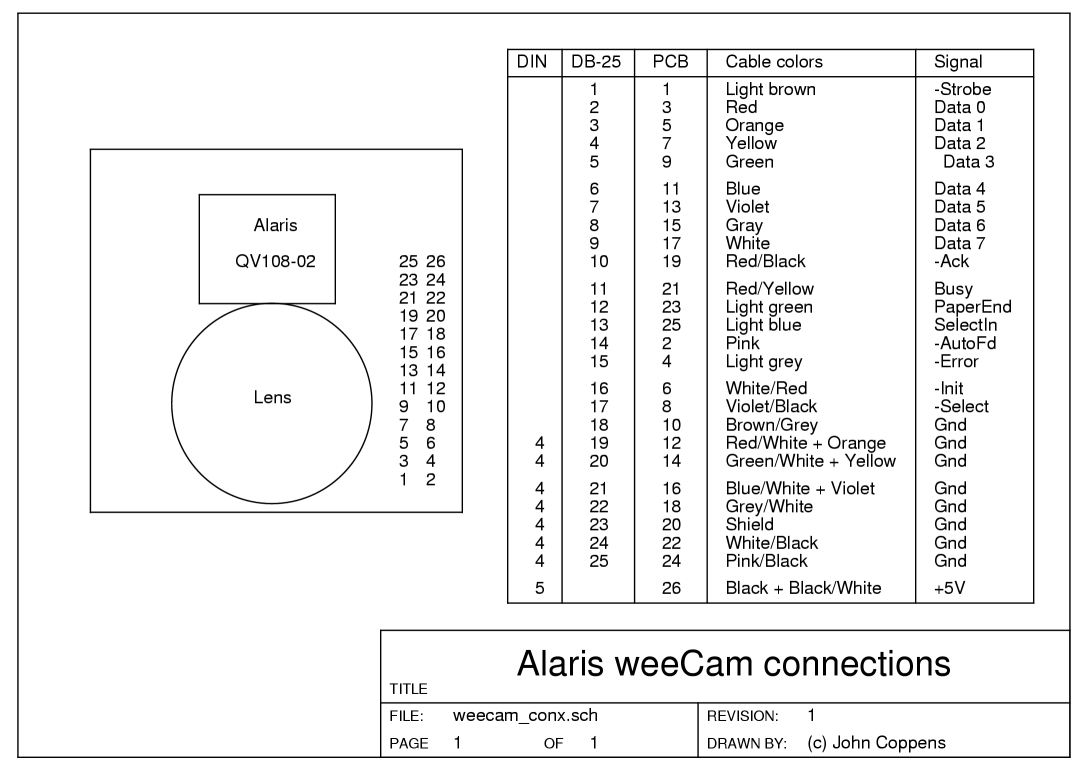

Connections from the weeCam to the parallel port. Click on the image for a larger (PNG format) image. For those who don't have a PNG format viewer yet, there's also a PDF version. |
