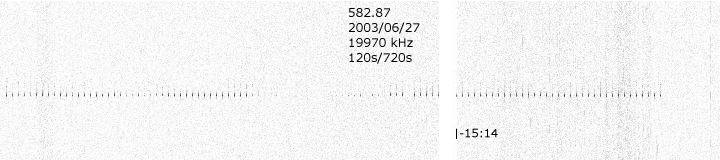

This is one of the backscatter radars in the US. The signal is very
strong, and the 'hair' above the line is the 'backscatter' - reflected
signals
|
|
|
|
Another of the BS radars. Notice that the reflection is quite different |
|||
|
This example is a 'real' sounder - the low power is noticeable as a
much finer line on the graph.
|
|
|
|
This is the sounder at BRI, a firm that produces sounders (belongs to Dr Barry, the actual inventor of the system. |
|||
|
Each of the three BS radar transmitters are teamed up with a real
sounder. Here is the sounder...
|
|
|
|
And this is the radar - the power difference is very noticeable, isn't it? |
|||
|
This the second radar...
|
|
|
|
... and this is the third one (in Puerto Rico). Don't look for them on these times, they change sequence every few days. |
|||
